Model Series

MR11-30

Base Type

G4 (Bi-Pin)

Input Voltage, V (typ)

12VAC (Dimmable)

Power (W)

1

Lumens (lm)

41-48

Color Temp. (Kelvin)

2800K to 3200K (Warm White)

4800K to 5200K (True White)

Viewing Angle

4515-40

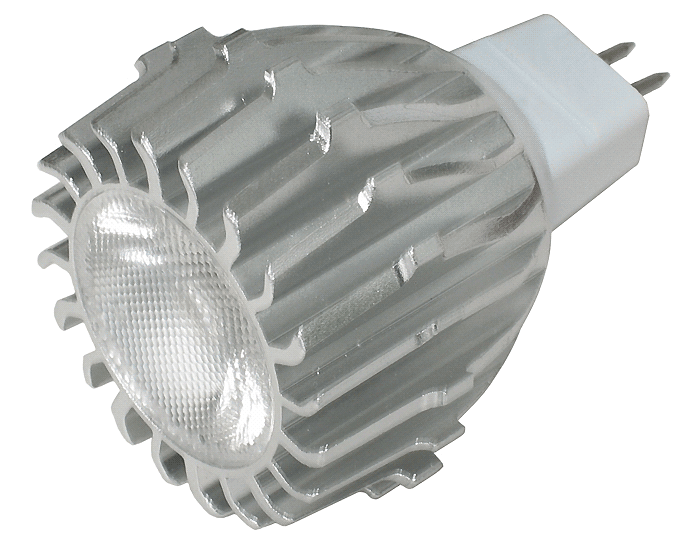

Model Series

MR16-6W

Base Type

GU5.3 (Bi-Pin)

Input Voltage, V (typ)

12VAC (Non-Dimmable)

Power (W)

5

Lumens (lm)

321-470

Color Temp. (Kelvin)

2700K to 2875K (Halogen White)

2800K to 3250K (Warm White)

6000K to 6500K (Pure White)

Viewing Angle

15-40

Model Series

MR16-4W

Base Type

GU5.3 (Bi-Pin)

Input Voltage, V (typ)

12VAC (Non-Dimmable)

Power (W)

5

Lumens (lm)

180-244

Color Temp. (Kelvin)

2700K to 2875K (Halogen White)

3000K to 3200K (Warm White)

5000K to 6000K (Pure White)

Viewing Angle

15-35

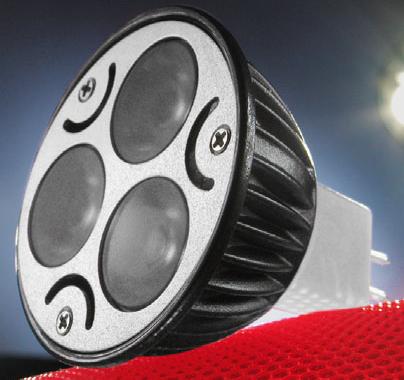

Model Series

MR16-3W

Base Type

GU5.3 (Bi-Pin)

Input Voltage, V (typ)

12VAC (Non-Dimmable)

Power (W)

3

Lumens (lm)

113-165

Color Temp. (Kelvin)

3000K to 3400K (Warm White)

6000K to 6500K (Cool White)

Viewing Angle

15-20

Model Series

MR16-2W

Base Type

GU5.3 (Bi-Pin)

Input Voltage, V (typ)

12VAC (Non-Dimmable)

Power (W)

2

Lumens (lm)

100-140

Color Temp. (Kelvin)

2700K to 2875K (Halogen White)

3000K to 3200K (Warm White)

5000K to 5500K (Pure White)

Viewing Angle

15-20

Model Series

GU10-6W

Base Type

GU10 (Bi-Pin)

Input Voltage, V (typ)

100-260VAC (Non-Dimmable)

Power (W)

5.2

Lumens (lm)

123-173

Color Temp. (Kelvin)

2700K to 2875K (Halogen White)

2800K to 3250K (Warm White)

5000K to 6350K (Pure White)

Viewing Angle

30
